Stage Lighting Manufacturer
From procurement to production and assembly, quality is strictly controlled; products are strictly inspected and aging tested to ensure good stability.

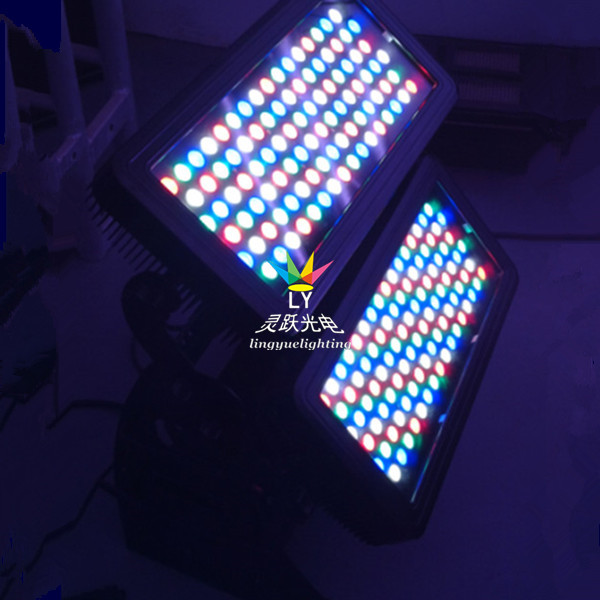

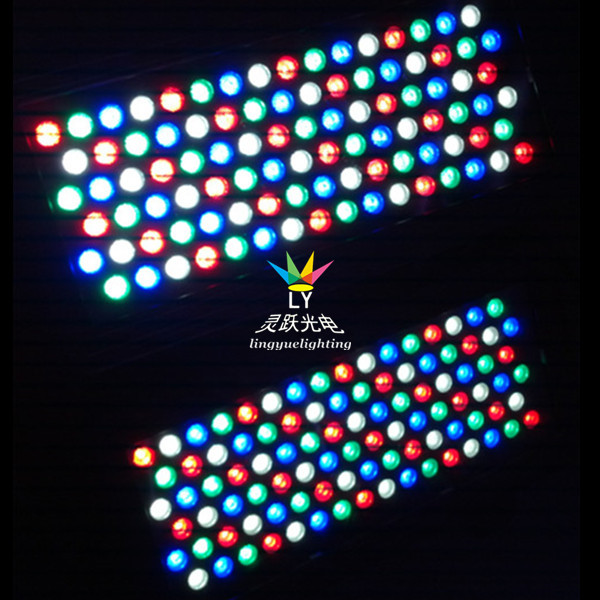

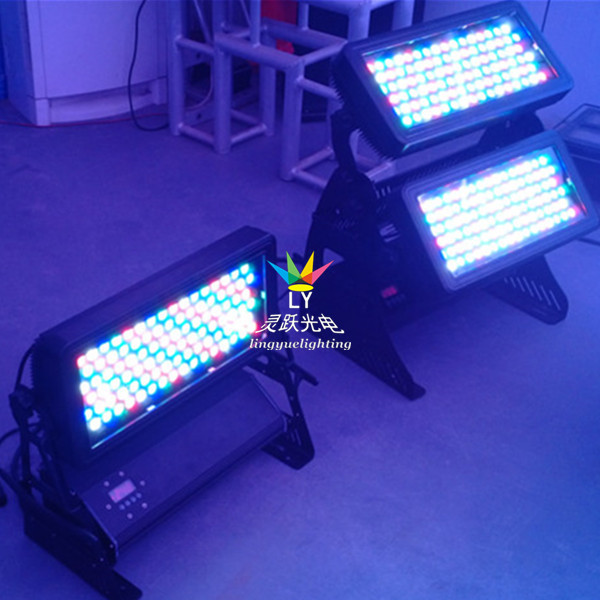

Product Name: IP65 192x3W Wall Washer
Product status: conventional product (originated in Guangzhou-China)
Place of Origin: China (Guangzhou)
Product model: LY-1920W waterproof 192 LED flood light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Product status: conventional product (originated in Guangzhou-China)
Place of Origin: China (Guangzhou)
Product model: LY-1920W waterproof 192 LED flood light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (air box optional)
Brand Name: LY Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Scan to add WeChat customer service to provide more comprehensive services
Parameter
Lighting Effect
Video Show
Applications
Download
Model: LY-1920W N
ame: Waterproof 192x3W LED flood light
|
1. Power supply, optical system
|
|||
|
Rated voltage
|
AC90V-240V±10%,50-60Hz
|
rated power
|
700W
|
|
Translucent lens
|
Frosted lens (or lens with smooth surface)
|
Lens angle
|
25°（15°/45°/60°）
|
|
LED lamp bead specifications
|
192 3W high brightness LED
|
control panel
|
LED LCD display + button
|
|
|
|||
|
2. Color/Life/Environment
|
|||
|
colour
|
Red, green, blue and white, unlimited color mixing
|
working environment
|
temperature：-20-40℃
humidity：5%-95%
|
|
LED lamp life
|
6-10 million hours
|
Chip current
|
600mA
|
|
|
|||
|
3. Functional effect
|
|||
|
Control mode
|
Self-propelled/master-slave/DMX512/voice control
|
Dimming
|
0%～100% linear dimming
|
|
aisle
|
8 DMX512 channels (digital display)
|
Strobe
|
1-30 times/second electronic strobe and random strobe
|
|
|
|||
|
4. Appearance and packaging
|
|||
|
Material
|
Die-cast aluminum alloy split heat dissipation structure design
|
Lamp net weight
|
26kgs
|
|
1 unit/air box gross weight
|
49kgs
|
1 unit/flight box size
|
65x58x70cm
|
|
|
|||
|
5. Other
|
|||
|
Installation method
|
Fixed to the ground with screws
|
waterproof level
|
IP65
|
|
Standard accessories
|
Aluminum lamp hook + lamp comes with signal line and power line + instruction manual
|
Certification and reporting
|
CE/ROHS/ISO9001/Quality inspection report/IP65 waterproof grade inspection report
|
|
Custom requirements
|
Customization is not supported for less than 30 units, and the delivery time for customized models will increase, about 10 days (customization such as: LED light source / silk screen LOGO / packaging / LED lens angle, etc.)
|
Scope of application
|
Bridge/park/TV tower/ferris wheel/nightclub/party/hotel wedding/outdoor large-scale commercial performance, etc.
|
